2017 Hot Sales factory lamps Low Bay high bay lamp 200W 16000lm pass CE/ROHS/FCC/CCC induction high bay DC24V DC12V lamps

2017 Hot Sales factory lamps Low Bay high bay lamp 200W 16000lm pass CE/ROHS/FCC/CCC induction high bay DC24V DC12V lamps
  • Продавецwww.15thinfantry.us
  • Список ценUS $328.00piece
  • Продажная ценаUS $328.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,8 (193)

Oписание продукта

40W 60W 80W 100W 120W 150W 200W 250W 300W High Power Led High Wall light Induction Flood Lamps Wall light Outdoor Floodlighting




      As a professional induction lamps and led lighting solution supplier, we offer the lighting solutioin to 2010 Shanghai world expo, we make sure every piece that we send will be tested by our engineers 100% when we  deliver to our esteem customer friends

We welcome our customers contact us when you have any perfect on our products by email or msn

Jacky Cai

JieMing Optoelectronic Co., Ltd
Shenzhen JieMingLang Electronic Co., Ltd
…………………………………………………
An ISO 9001 : 2008 QMS Certified Company
…………………………………………………

F2, Haojingshidai, Mingzhudadao, Shajing street, Bao`an district, Shenzhen, China

Tel : +86 755 85240362 Mobile : +86 134 80946312 skype:jackycai8888

we are the parterner of shanghai World Expo

35W,30W,40W23W,20W,18W,25W



 Features

The advantages of the high frenquency induction lamp:

Long lifespan: Average lifespan 100,000hrs,maintenance free,suitable for long term usage.

Energy Saving: save above 40% than CFL and Save up to 40% compared to metal halides,13 times more efficient than incandescent light bulbs, and up to twice as efficient as compact fluorescent lights.

Instant On/Off:Instant start and re-strike.

High lighting Efficiency:Lighting efficiency >80lm/w

High Lumens Maintenance:Luminance maintenance rate >80% after 60,000hrs

High Color Rendering:>85

Constant wattage output: The output power varies less than 3% with input voltage fluctuation up to +-10%

Wide Selection of Color Temperature: 2700K~6500K

Power Factor: >0.95

Low Total Harmonic DistortionTHD<8%

Flicker-free: High frequency (250KHz) Creates a better and more comfortable illumination for eyesight protection.

Wide Temperature ToleranceOperating ambient temperature -20~+50 with enclosed fixcture, lamp for -40 availble. -40 centidegree still normal start

Dimming function: Optional intelligent dimming controller.

Green Lighting ProductAmalgam adopted 99% recycledrt

JML-LVD series-company details.jpg




company information.JPG










For compact bulb induction lamp, it is very easy to install like CFL with E27/E40 base. You can light them in any direct in your home, shop, school, ECT.

For round and rectangular shape, when you wired them together with your fixture, please notice as following:

1. Please confirm good connection between tube and ballast firstly, and then make the L side and N side of ballast connect with power. So, it can avoid load open to be charged.

2. The watt of tube and ballast must be consistent. Do not make mistake.

3. Green and yellow line is the groinding line, it must be connected with ground and lamp shade.

4. For the fixture reflector, you?d better to use mirror material and must have some spare room for tube, tube and the side of reflector need 70~90mm distance, at least40mm from bottom of reflector.

5. For all kinds of different fixtures matched with induction lamp, you must pay attention the heat dispersion. The better heat dispersion, the longer lifespan for induction lamp. The temperature inside the ballast house tried to keep before 50 cent degree. The farther between ballast and heat source, the better.

6. Solar system, 12VDC or 24VDC, take care that control system should have certain function of anti-interference.

7. For dimming function induction lamp, it will be the same installation way if you choose automatic model; if you chosed hand control model, we will give you special instruction paper .Do not worry. Easy to follow



8. Introduction of installation

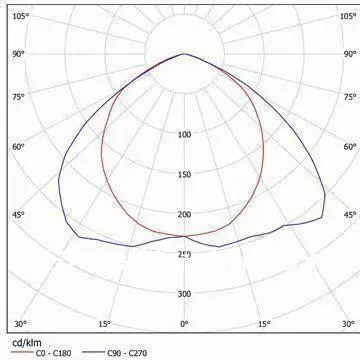

JML-FL507-Beam Angle.jpg






 Note: the wire color on the ballast maybe change, but working priciple is the same



 Product photos.jpg

 All of product picture will take by our factory seriver, so pls don\'t worry about the picture that is different from our our goods that we send

Rond shape floodlight.jpg



Aging test.jpg

 All of our products were sent out before 100% testing by our professional technical staffs and 100% qualification, it is rare to have the lamp problem. Do not worry, you can go ahead for the purchase.We can warranty 3~5 years



Round-low frequency2.jpg






Largely applying in workshop, hall, square, highway, big marketplace and so on project lighting,

especially for factory, school, exhibition shop, station, port, airport, tunnel, made the real energy-saving.

Also, for some small watt with DC voltage item, it is best choice to use in solar system.

Together with street fixture, better choice than LED streetlight.

For unit value of induction lamp are very high, we are very care of the package for each lamp.

All of our products were packed by custom foam box or other safe package and standard exporting cartons with professional fragile label.

We delivered abroad many pieces. So far, nobody found fragile. But, really,

When you received our package, if you found the outer cartons are broken, please state to the courier and also hear the sound from the cartons.

If it is clear to hear the glass fragile, please reject sign and we will send your new one again.

Sometime, if our package foam are not enough for some item, we will pack with other different ways in order to make you got the products asap. But, we make sure satety to arrive. Hope you can understand.

LED floodlight-application-1.jpg
