Oписание продукта

2017 Hot Sales factory lamps Low Bay high bay lamp 200W 16000lm pass CE/ROHS/FCC/CCC induction high bay DC24V DC12V lamps


    Shenzhen Jieminglang Electronic is a 10 years lighting manufacturer, welcome to cooperate with us by good quality, best after-servce and price, the below advantages that other suppliers can not have offer for you

1. The cooperator of 2008 Beijing Olympic game

2.  Offer the lighting solutioin to 2010 Shanghai world expo

3. Long-term relationships with several well-known American and European customers, like Osram, Philips, Optogan.

Choose us, choose the trust and confidence

we are the parterner of shanghai World Expo


Main Tech:


1,Category: Highbay

2,Light Source: Circle Tube - 40W/80W/100W/120W/150W/200W/250W/300W

3,Voltage: 165V-265V

4,Dimension: Φ570x443mm

5,Protection Class: IP43

6,Installation Height: 4-10M

Light Fixture Construction

1,End cover made of high pressure die-casting aluminum. The electrical box is made of aluminum alloy profile.

2,Electrostatic spray surface, perfect appearance.

3,Oxidation and polishing high-purity aluminum reflector, high reflectance and stable optical property.

4,UV and high temperature resistant PC lamp cover, high intensity, good light transmission and long life span

5,Can match with LVD Circle series lamp with its excellent Color Rendering Index and light efficiency, long life span, no flicker and energy saving, wide range of color temperature and soft light ,stable light output.

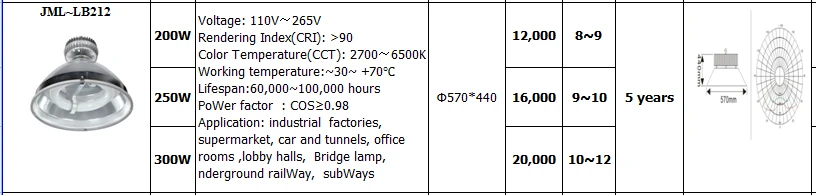

6. Rated Models(without shipping charge):

The advantages of the high frenquency induction lamp:

Long lifespan: Average lifespan 100,000hrs,maintenance free,suitable for long term usage.

Energy Saving: Save up to 40% compared to metal halides,13 times more efficient than incandescent light bulbs, and up to twice as efficient as compact fluorescent lights.

Instant On/Off:Instant start and re-strike.

High lighting Efficiency:Lighting efficiency >80lm/w

High Lumens Maintenance:Luminance maintenance rate >80% after 60,000hrs

High Color Rendering:>85

Constant wattage output: The output lamp power varies less than 3% with input voltage fluctuation up to +-10%

Wide Selection of Color Temperature: 2700K~6500K

Power Factor: >0.98

Low Total Harmonic Distortion: THD<8%

Flicker-free: High frequency (250KHz) Creates a better and more comfortable illumination for eyesight protection.

Wide Temperature Tolerance: Operating ambient temperature -20~+50 with enclosed fixcture, lamp for -40 availble. -40 centidegree still normal start

Dimming function: Optional intelligent dimming controller.

Green Lighting Product: Amalgam adopted 99% recycledrt

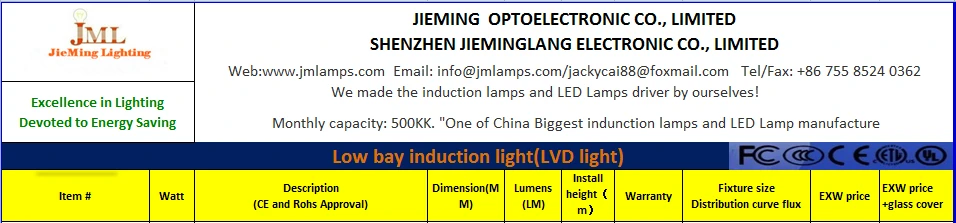

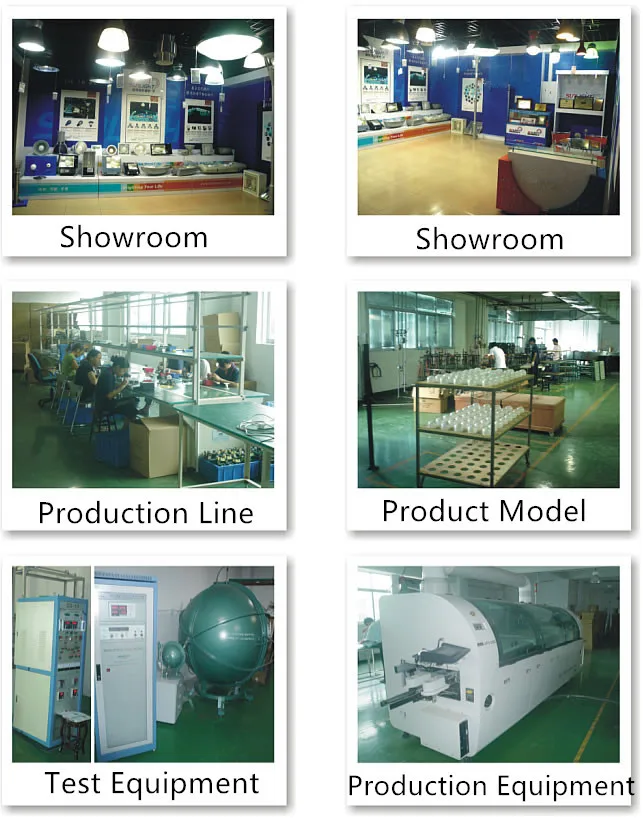

JML-LB212-Company detail.jpgJML-LB212 (3).jpg





For high bay induction light, You can light them in any direct in your home, shop, school, ECT.

For round and rectangular shape, when you wired them together with your fixture, please notice as following:

1. Please confirm good connection between tube and ballast firstly, and then make the L side and N side of ballast connect with power. So, it can avoid load open to be charged.

2. The watt of tube and ballast must be consistent. Do not make mistake.

3. Green and yellow line is the groinding line, it must be connected with ground and lamp shade.

4. For the fixture reflector, you’d better to use mirror material and must have some spare room for tube, tube and the side of reflector need 70~90mm distance, at least 40mm from bottom of reflector.

5. For all kinds of different fixtures matched with induction lamp, you must pay attention the heat dispersion. The better heat dispersion, the longer lifespan for induction lamp. The temperature inside the ballast house tried to keep before 50 cent degree. The farther between ballast and heat source, the better.

6. Solar system, 12VDC or 24VDC, take care that control system should have certain function of anti-interference.

7. For dimming function induction lamp, it will be the same installation way if you choose automatic model; if you chosed hand control model, we will give you special instruction paper .Do not worry. Easy to follow.

8. JML-LB212 Drawing and size picture


JML-LB212-size photos.jpg


Product photos


All of product picture will take by our factory seriver, so pls don\'t worryabout the picture is different from our our goods that we send

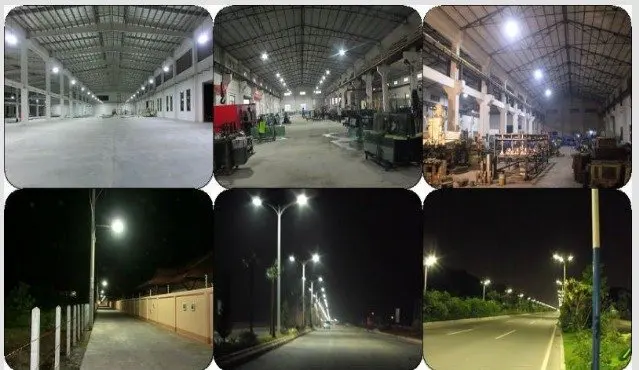

Largely applying in workshop, hall, square, highway, big marketplace and so on project lighting,

especially for factory, school, exhibition shop, station, port, airport, tunnel, made the real energy-saving.

Also, for some small watt with DC voltage item, it is best choice to use in solar system.

Together with street fixture, better choice than LED streetlight.

For unit value of induction lamp are very high, we are very care of the package for each lamp.

All of our products were packed by custom foam box or other safe package and standard exporting cartons with professional fragile label.

We delivered abroad many pieces. So far, nobody found fragile. But, really,

When you received our package, if you found the outer cartons are broken, please state to the courier and also hear the sound from the cartons.

If it is clear to hear the glass fragile, please reject sign and we will send your new one again.

Sometime, if our package foam are not enough for some item, we will pack with other different ways in order to make you got the products asap. But, we make sure satety to arrive. Hope you can understand.




All of our products were packed by custom foam box or other safe package and standard exporting cartons with professional fragile label.

We deliveried abroad many pieces. So far, nobody found fragile. But, really,When you received our package,

if you found the outer cartons are broken, please state to the courier and also hear the sound from the cartons.


SL201 housing outside package.JPGBulb body.JPG








We started to export this induction lamp abroad from 2004 to now. So far, we had sold this induction lamp all over the world. Such as, Germany, Italy, America, Chile, Mexico, Thailand, France, Singapore, Ireland, Spain,Egtpy and so on.


Product hall01_.jpg
